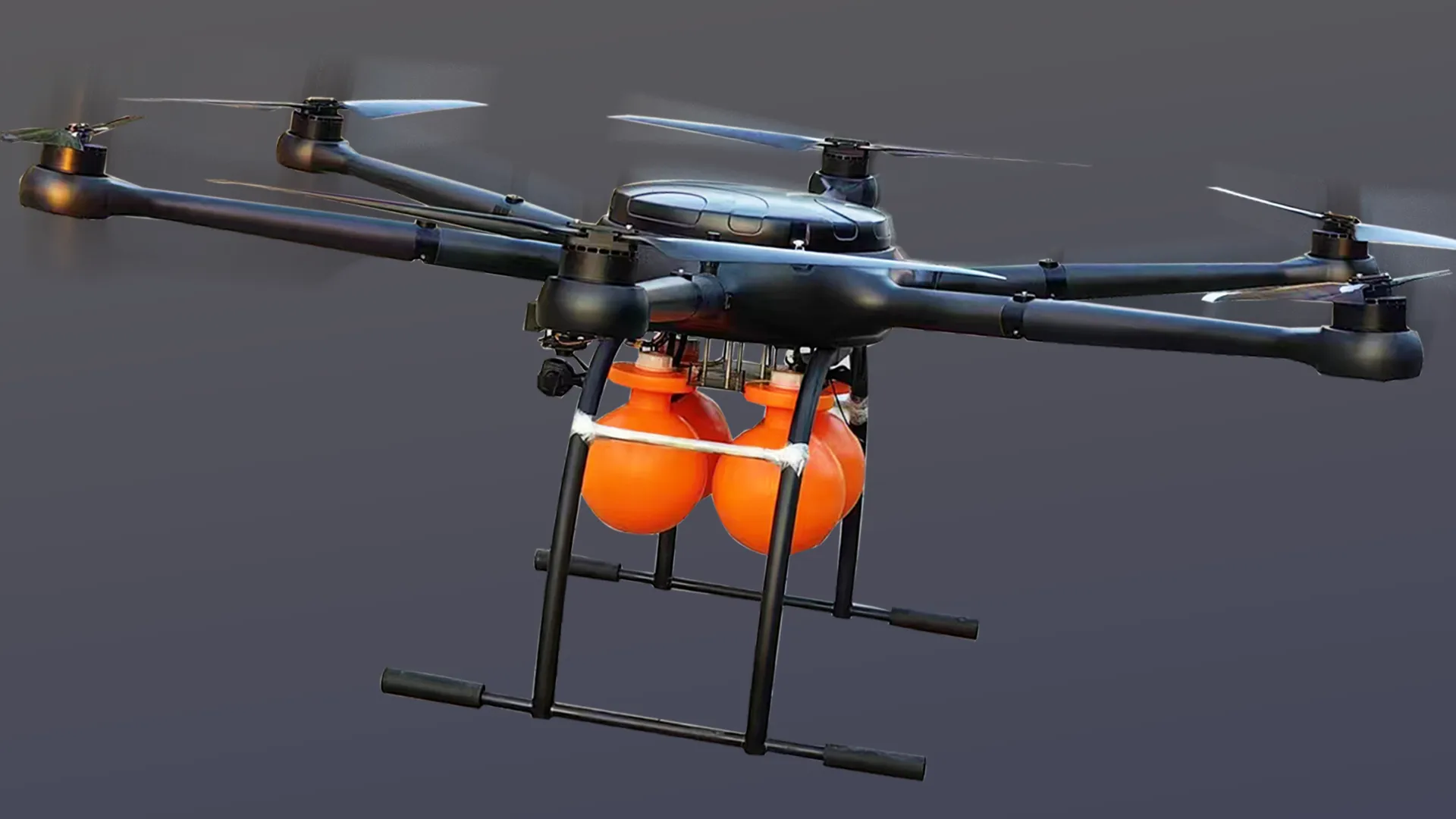

XT6-2700
The XT6-2700 adopts an integrated carbon fiber molding process, offering exceptional overall structural strength with a maximum payload capacity exceeding 50 kg. It can carry heavy equipment and emergency devices for high-altitude operations. With excellent product quality and environmental adaptability, it maintains stable flight performance even in high-altitude and high-temperature environments. This product is widely applicable in fields such as emergency rescue and short-distance material delivery.
| Wheelbase | 2695 mm |
|---|---|
| Dimensions | Φ 3914 x 990 mm (unfolded) |
| Weight | 30.32 kg (excluding battery) |
| Maximum Takeoff Weight | 135 kg |
| Recommended Propeller | Diameter/Pitch: 48 x 17.5 inch |
| Supported Satellite Systems | BDS B1/B2, GPS L1/I2, GLONASS L/L2, GALILEO E1/E2, QZSS L1/L2 |
| GNSS | Supported |
| Positioning Accuracy (RMS) |
Vertical: ±1 m (GNSS Single Point), ±0.8 m (DGPS), ±1.5 cm + 1 ppm (RTK) Horizontal: ±1.5 m (GNSS Single Point), ±1 m (DGPS), ±1.0 cm + 1 ppm (RTK) |
| Orientation Accuracy (RMS) | 0.5° |
| Maximum Ascend Speed | 4 m/s |
| Maximum Descent Speed | 2 m/s |
| Maximum Horizontal Speed | 15 m/s |
| Maximum Flight Altitude | 4000 m |
| Maximum Wind Resistance | 13 m/s (Grade 6 wind) |
| Maximum Flight Duration |
No Load: 80 min 30 kg Load: 56 min 50 kg Load: 40 min |
| Maximum Payload Flight | 60 kg |
| Protection/Rainproof Rating | IP54 / Light Rain |
| Radar Detection Range | 1.5 m - 50 m |
| Operating Temperature Range | -20°C to 55°C |

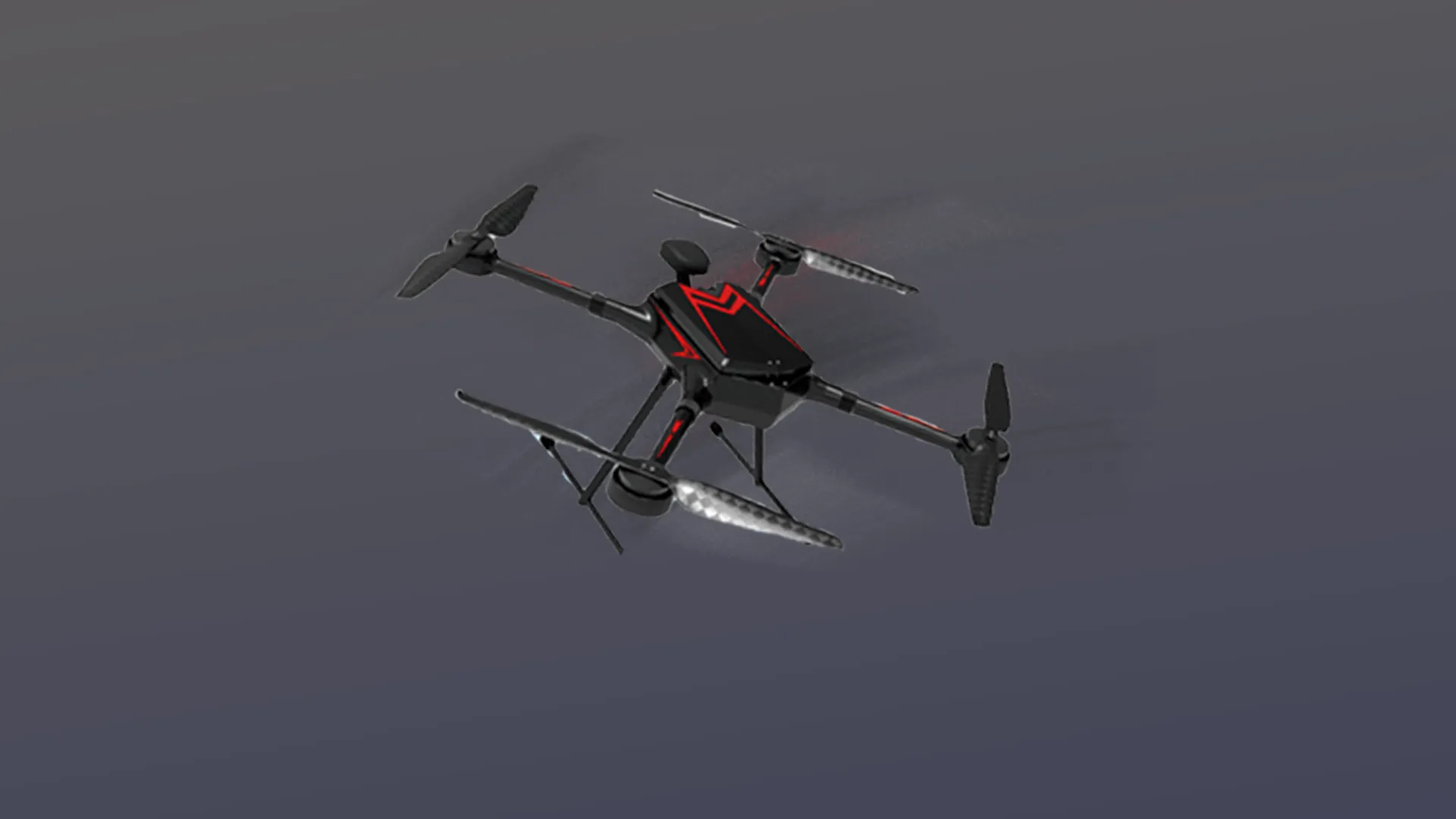

XT4-1300
The XT4-1300 electric multi-rotor drone features an integrated carbon fiber molding and composite tubing process, offering simplicity and high cost-effectiveness. It achieves a maximum flight duration of over 65 minutes and supports various payload configurations. With excellent product quality and environmental adaptability, it maintains stable flight performance even in high-altitude and high-temperature environments. This product is widely applicable in fields such as payload delivery and material transportation.
| Wheelbase | 1300 mm |
|---|---|
| Dimensions |
Φ 2164 x 530 mm (unfolded) Φ 668 x 530 mm (folded) |
| Weight | 21 kg (excluding battery) |
| Maximum Takeoff Weight | 32 kg |
| Supported Satellite Systems | BDS, GPS, GLONASS |
| GNSS | Supported |
| Positioning Accuracy (RMS) |
Vertical: ±1 m (GNSS Single Point), ±0.8 m (DGPS) Horizontal: ±1.5 m (GNSS Single Point), ±1 m (DGPS) |
| Orientation Accuracy (RMS) | 0.5° |
| Maximum Ascend Speed | 5 m/s |
| Maximum Descent Speed | 3 m/s |
| Maximum Horizontal Speed | 20 m/s |
| Maximum Flight Altitude | 4000 m |
| Maximum Wind Resistance | 10 m/s (Grade 5 wind) |
| Maximum Flight Duration |
No Load: 65 min 7 kg Load: 45 min 10 kg Load: 35 min |
| Maximum Payload Flight | 15 kg |
| Protection/Rainproof Rating | IP54 / Light Rain |
| Operating Temperature Range | -20°C to 55°C |
XT4-1 Tethered Drone
The XT4-1 tethered drone features a semi-automatic cable reel system that integrates a ground power supply, high-performance power cables, and an automatic cable management device. It provides a power cable length of up to 120 meters. The product is widely used in emergency rescue, communication, and lighting applications.
| Wheelbase | 900 mm |
|---|---|
| Dimensions |
Φ 1460 x 361 mm (unfolded) Φ 480 x 170 mm (folded) |
| Weight | 3.6 kg (excluding battery) |
| Maximum Takeoff Weight | 10 kg |
| Supported Satellite Systems | BDS B1/B2, GPS L1/L2, GLONASS L1/L2, GALILEO E1/E2, QZSS L1/L2 |
| GNSS | Supported |
| Positioning Accuracy (RMS) |
Vertical: ±1 m (GNSS Single Point), ±0.8 m (DGPS), ±1.5 cm + 1 PPM (RTK) Horizontal: ±1.5 m (GNSS Single Point), ±1 m (DGPS), ±1.0 cm + 1 PPM (RTK) |
| Orientation Accuracy (RMS) | 0.5° |
| Maximum Ascend Speed | 5 m/s |
| Maximum Descent Speed | 3 m/s |
| Maximum Horizontal Speed | 15 m/s |
| Maximum Flight Altitude | Ordinary propeller: 2000 m, Plateau propeller: 4000 m |
| Maximum Wind Resistance | 10 m/s (Grade 5 wind) |
| Maximum Flight Duration |
No Load: 4 min (No tethered connection) Tethered connected: 24 h and more, height 120M |
| Protection/Rainproof Rating | IP54 / Light Rain |
| Radar Detection Range | 1.5 m - 50 m |
| Operating Temperature Range | -20°C to 55°C |
